Google Sheets Data Extraction using Apps Script

One-click data extraction from Google Sheets, using Apps Script. Criteria for data extraction is user defined.

Overview

We can extract specific data from google sheets, using Apps Script.

We use a simple button, which can also be set in the Menu, which runs the extraction script. This script filters the data using our criteria and pastes the result into a new sheet. Using 1-click button, we can extract data from google sheets using any criteria.

Demo (Video)

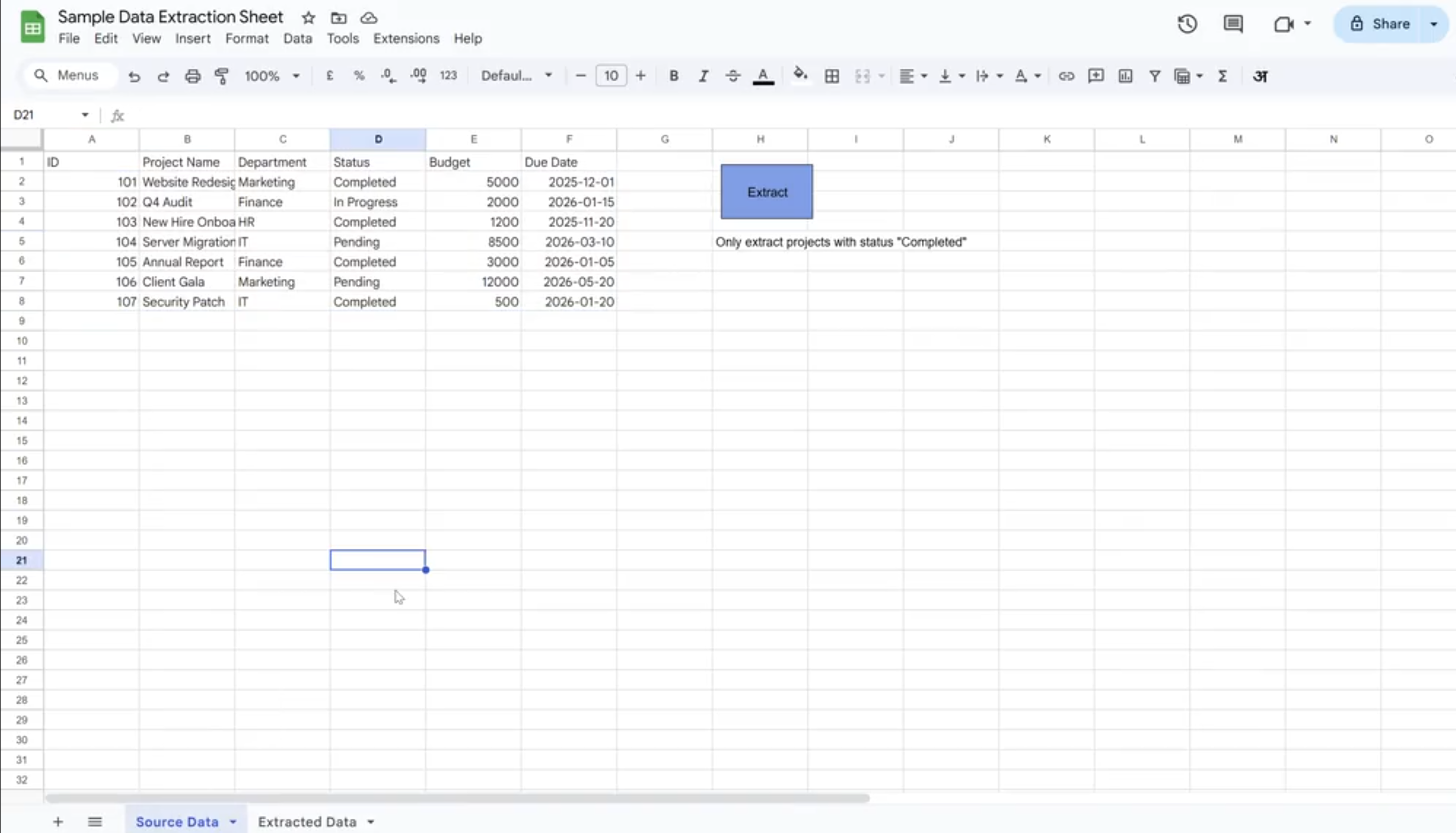

Google Sheets Interface

The Google sheet interface allows users to define their extraction criteria and click a button for extraction to occur to a new sheet.

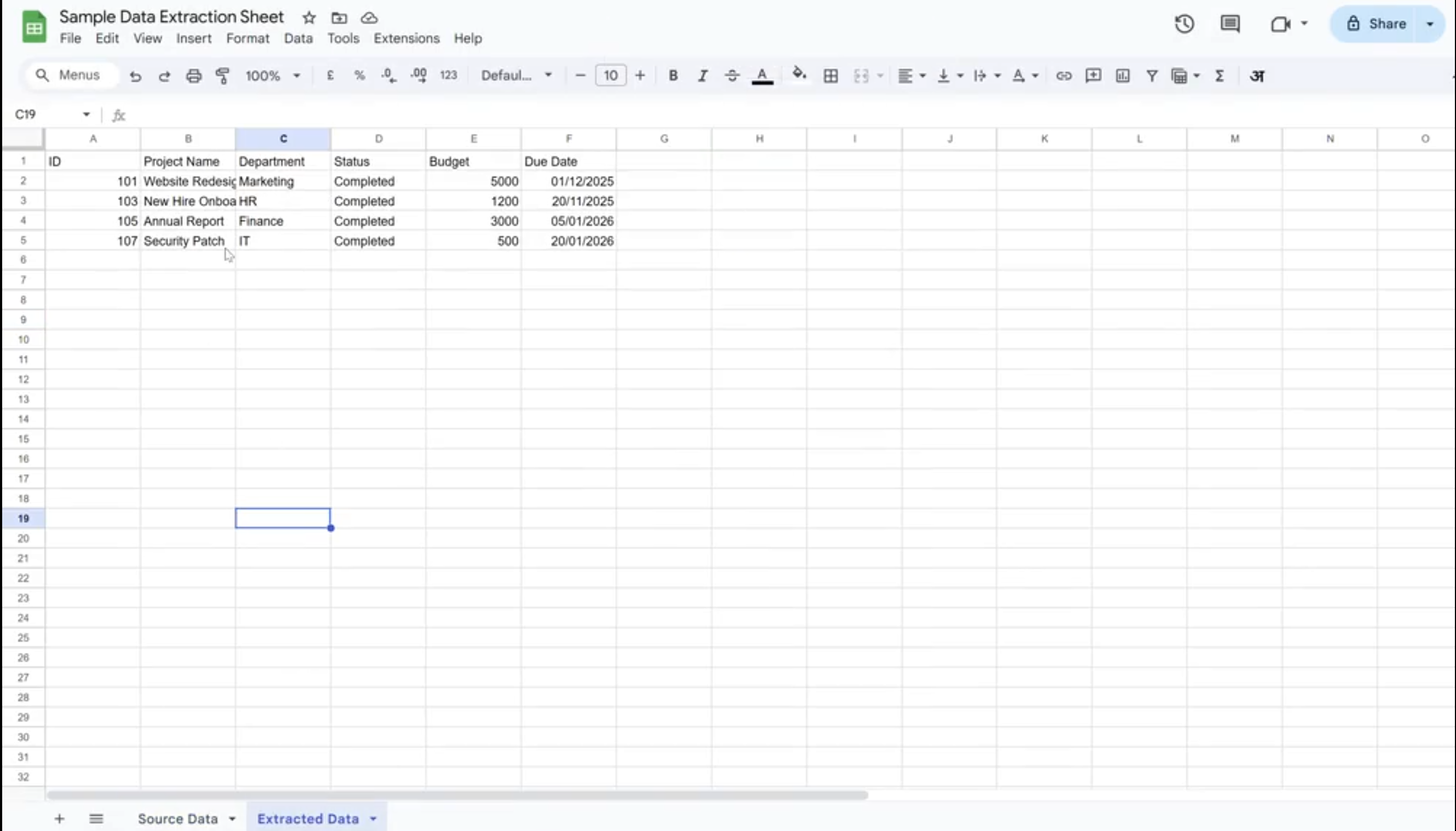

Below is the extracted data

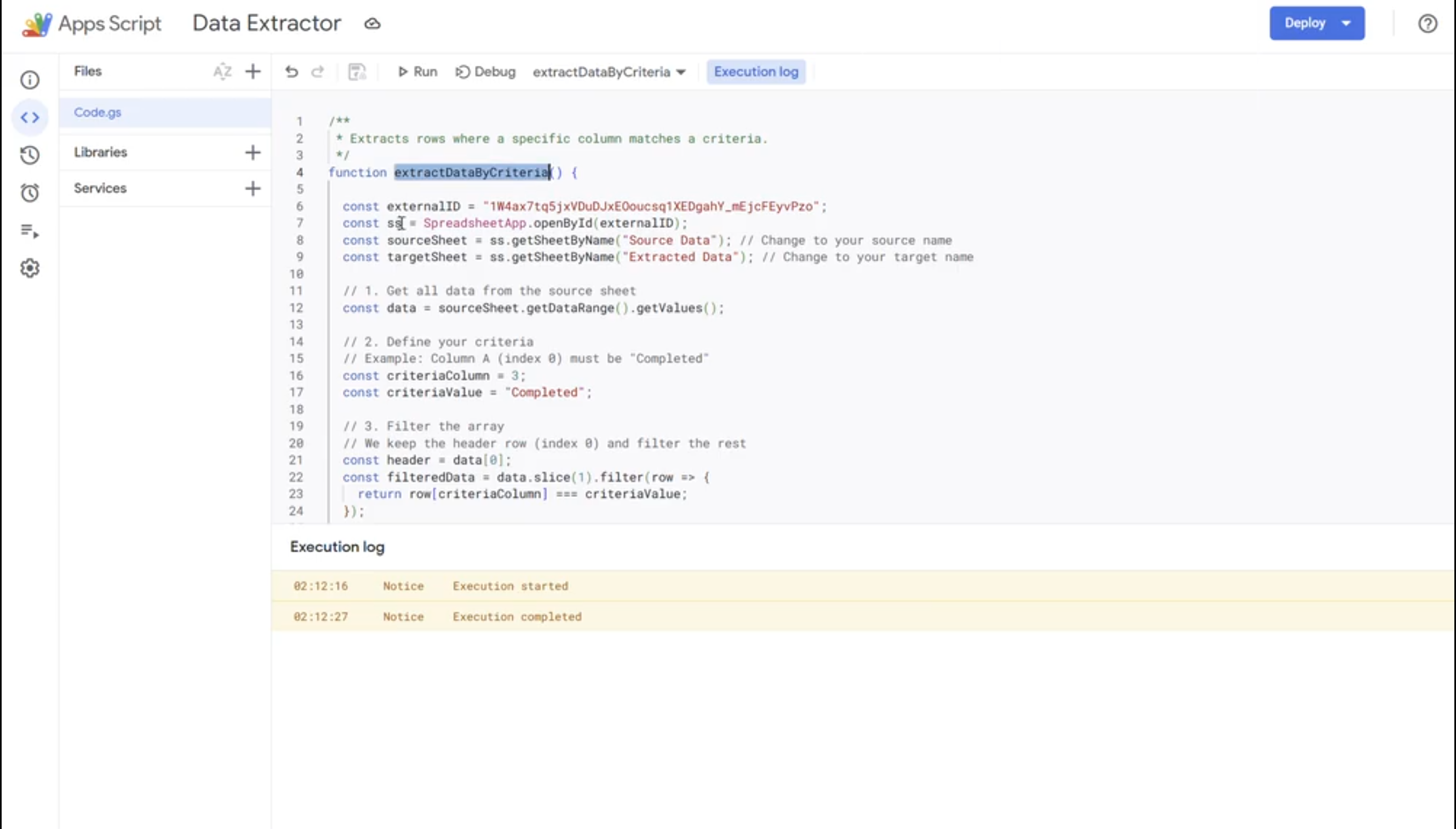

Google Apps Script Logic

The Apps Script:

• Fetches the Google Sheet, the source and destination sheets
• Gets the user input for setting the criteria
• Filters the source data based on criteria
• Pastes the filtered results into the destination sheet
• This Script is linked to a button in Google Sheets, and runs when the button is clicked

Tech Stack

• EGoogle Sheets for storing the source data, extracted data and button
• Google Apps Script for automating the extraction process

Key Learnings

• Fetching Google Sheets by their unique ID and all the sheets within that workbook
• Filtering a table and retrieving filtered data
• Linking a button to an Apps Script
